The LockIT RJ45 patch cords prevent unintended or unauthorized disconnection of the plug. These temper-proof patch cords are available in category 6 UTP, category 6A UTP and category 6A shielded versions and in 26 and 28 AWG constructions. The cords require the LockIT plug key for removal but can be freely inserted into any RJ45 outlet to make a connection without needing a key. LockIT cords are the perfect choice for use in public areas such us schools, retail stores, transportation, hospitality and waiting areas, and in mission-critical networks such as data centers, health care environment and government system.
Siemon | LockIT™ Patch Cords
Siemon has launched their new LockIT™ Category 6 and Category 6A patch cords that have been designed to prevent unintended or unauthorised disconnections in a network.
The new cords are ideal for preventing disconnection of devices such as security cameras, point-of-sale terminals, self-service kiosks, digital displays and other devices in publicly accessible spaces like schools, retail stores, transportation hubs, hospitality venues and hospitals.
LockIT cords are also suited for protecting mission-critical network connections within data centres and telecommunications spaces. They are offered in both 26 and 28 AWG constructions, with 28 AWG offering a smaller diameter for better airflow and increased flexibility in high-density patching areas.

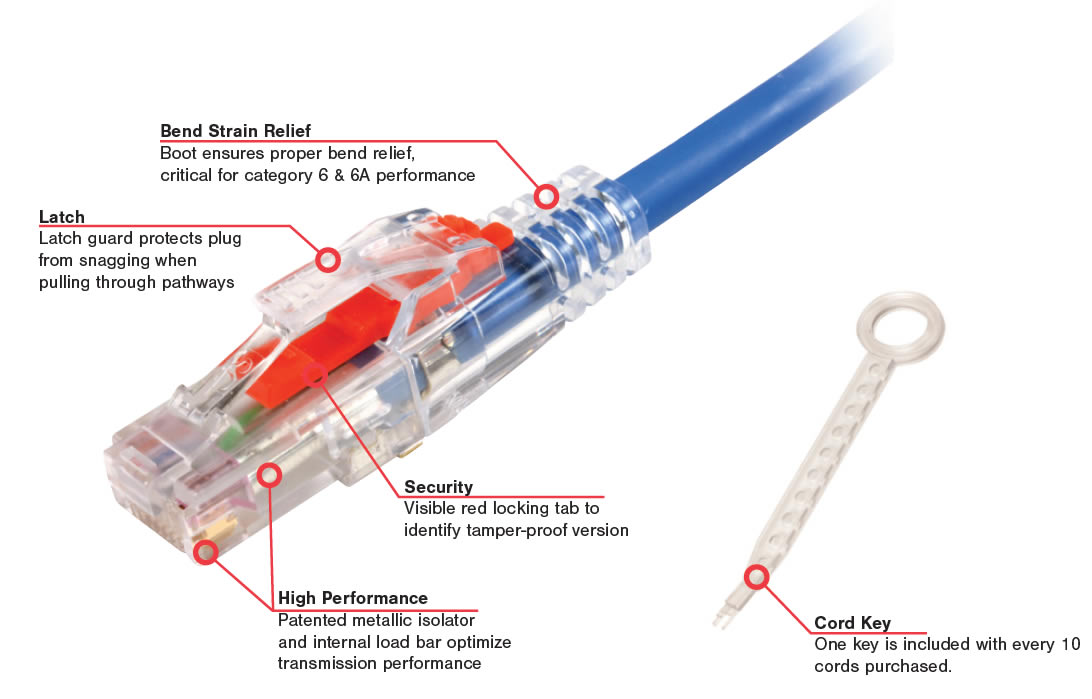

Key Features
Easy Installation
LockIT doesn’t require a
key to lock the cords in place,
simply insert the red tab to secure it
Simple Unlocking
The extended length of
the LockIT key allows for
easier access to unlock cords
Robust Support
The ribbed boot design
allows for effective bend relief
ensuring high system performance
Specificatons
Mechanical – Cord Cable (7×32 Stranded)
| Cord Type | 26AWG | 28AWG | |
| Cable OD (Nominal) | Category 6 UTP | 5.3mm (0.20 in) | 4.0mm (0.16 in |
| Category 6A UTP | 6.3mm (0.25 in) | 5.3mm (0.21 in) | |
| Category 6A Shielded | 6.4mm (0.25 in) | 5.5mm (0.22 in) | |
| Bend Radius | Category 6 UTP | 21mm (0.8 in) | 16mm (0.63 in) |
| Category 6A UTP | 25mm (1.0 in) | 21mm (0.84 in) | |
| Category 6A Shielded | 38.4mm (1.5 in) | 33mm (1.32 in) | |
| Cord Series | LockIT to LockIT | LKP1-, LKP3-, LKP5- | LKP2-, LKP4-, LKP6- |
| LockIT to RJ45 | LKM1-, LKM3-, LKM5- | LKM2-, LKM4-, LKM6- | |
| Wiring | T568A/B | T568A/B |
Electrical
| Contact Resistance | 20mΩ |
| Input to Output Resistance | 200mΩ |
| Min. Dielectric Withstand Voltage | 1000 VAC Contact to Contact |
| Insulation Resistance | 500MΩ |
| Compatibility | Category 6A, 6 and 5e |
| Current Rating @ 25°C | 1.5A |
| Power Over Ethernet | PoE (Type 1,2,3,4) PoH |
Mechanical – Plug
| Number of Plug Insertion Cycles | 2,500 |
| Min. Plug Retention Force | 50N (11.2 lbf) |
| Plug Compatibility | Compatible with RJ45 outlets |
| Cable to Plug Tensile Strength (min) | 20lbs |
mechanical
| Operating Temperature | -20 to 75°C (-4 to 167°F) |
| Flammability Rating | UL 94 V-0 |
| Green Features | RoHS, Lead-Free, Halogen-Free, PVC Free |
| Plug Housing Materials | Polycarbonate |
| Contact Materials | 50 Microinches Gold Plating or Equivalent |
| Plastic Materials | Flame Retardant Thermoplastic |
| Marking | Part Number, Length, Performance Leve |
