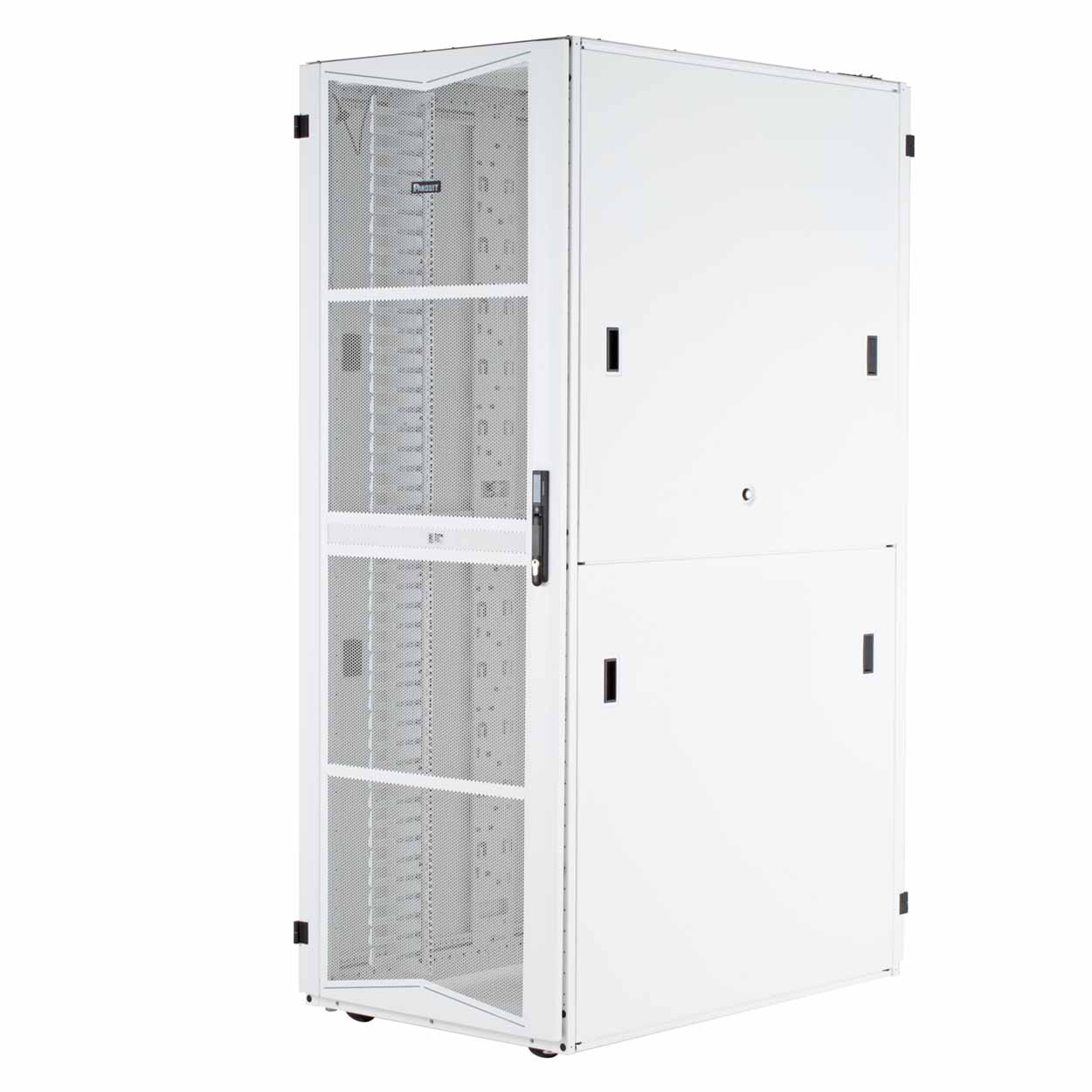

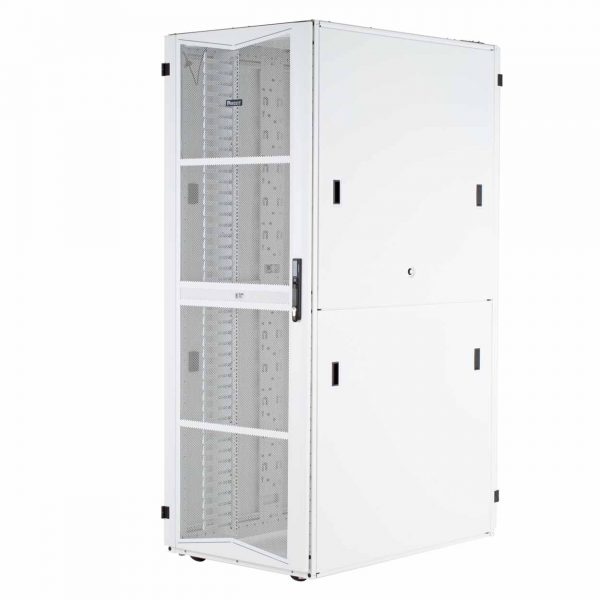

Panduit FlexFusion Cabinet

FlexFusion™ Cabinets offer a unique universal platform for all types of data centers and servicing needs including Hyperscale, Edge and Multi-Tenant Data Center. Built with best-in-class weight load of 3,500 lbs. and doors with maximum air flow of 80%, FlexFusion™ can tackle your most challenging cabinet installations. Whether it’s for server, network or hybrid applications, FlexFusion™ Cabinets deliver performance to keep your networks running at optimal efficiency.

Category: Tags: , , ,

FlexFusion Cabinets shall consist of a welded and assembled steel frame construction available in 600mm, 700mm, and 800mm widths, 1070mm and 1200mm depths and 42 RU, 45 RU, 48 RU, and 52 RU heights. The top of cabinet shall be available with either molded edge protection and snap-in covers for CoolBoot® Grommet Cable Seal or brush cable seal and rear lift-up lid for PDU cable lay-in. Fully adjustable front and rear cage nut equipment rails. Available options includes front single hinged door and rear split-hinged doors with 80% open perforation, horizontally split side panels, cable management fingers, vertical cable manager bracket, PDU mounting bracket and casters. The entire cabinet shall be electrically bonded without the use of bonding wires. Cabinet shall have a 1591kg (3500 lbs.) static load rating and 1136kg (2500 lbs.) rolling load rating.

Key Features

Performance

  • Best-in-class static load rating of 3,500 lbs. and 2,500 lbs. rolling load is the result of a sturdy and robust cabinet design that safely allows housing of heavier and high-density equipment. 80% open perforated doors assures maximum airflow thru the cabinet for high thermal application.

Rapid Deployment

  • Easy to adjust equipment rails with choice of time saving tool-less or standard hardware fastener, tool-less vertical cable manager bracket, and tool-less top cap rear entry allows for a faster cabinet installation time than other cabinet.

Versatility

  • Cabinet is available in wide range of sizes and options for hot aisle/cold aisle or thermal
    containment deployment.

Scalability

  • Configure to order platform to achieve the cabinet to your specification and save time and reduce Capex in your
    network deployment

Bonding

  • Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable
    network while reducing installation costs

Durable coating

  • Cabinets are powder coated in a durable, low maintenance polyester epoxy paint available in Black (RAL9005) or White (RAL9003)





Specifications

FlexFusionCabinets Specification
