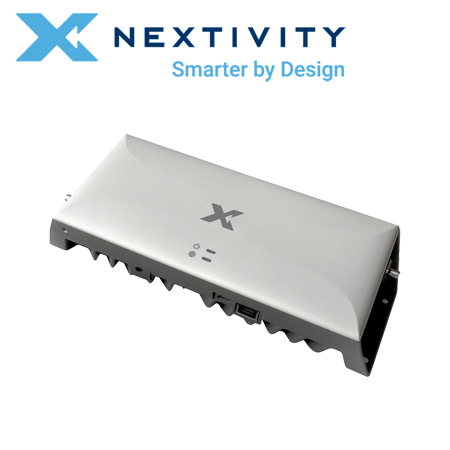

Nextivity CEL-FI GO G41

Name: Nextivity CEL-FI GO G41
SKU: 3100
Availability: InStock

Combining unmatched performance with ease of installation, Nextivity CEL-FI GO G41 is a singleoperator cellular signal booster that delivers reliable in-building 4G and 5G connectivity for “small box” retail stores, branch offices, and homes. In addition to featuring the latest Nextivity proprietary 4th generation IntelliBoost technology, which delivers channelized signal boosting and industry-leading signal gain up to 100 dB, GO G41 can be installed in as little as one day and can be monitored and managed remotely via the Nextivity WAVE Portal. GO G41 also gives you the flexibility to select and switch which MNO signal to
boost via the Nextivity WAVE App.

Category: Products

Description

The Nextivity CEL-FI GO G41 Smart Signal Repeater is the most powerful carrier-grade solution for overcoming cellular coverage issues in indoor environments. Providing up to 100 dB gain, GO G41 offers class-leading 5G/4G/3G voice and data performance. GO G41 also supports 5G NR operation for seamless network migration and consistent connectivity. In addition to providing cellular coverage up to 3,000 m² (1,500 m² in the U.K.) when configured with the included donor and server antennas, the system can be expanded with outdoor or additional server antennas for an increased coverage footprint. Plus, GO G41 is network safe and the easiest solution to install

Key Features

Maximum Gain

Industry Leading up to 100 dB Gain for 5G/4G/3G Voice and Data

Best Performance

Smart Signal Booster with IntelliBoost® Chipset Smart Technology

Cellular Coverage

Up to 3,000 m² (1,500 m² in the U.K.) per unit

Ease of Setup

6 Easy Steps Enable Quick Installation for Optimal System Performance

Nextivity CEL-FI WAVE

Mobile Device Application for System Set Up

Network Safe

Carrier Approved with No Noise Guarantee

DSS

Support for Dynamic Spectrum Sharing

Specifications

Frequency Bands

1/3/5/7/8/20/28L/28U/40

Relay Channel Bandwidths (MHz)

5/10/15/20

Networks

2G/3G/4G/5G

Network Protocols

GSM/WCDMA/LTE/DSS/NR

Network Selection

Automatically best available (WAVE App for manual setting)

Duplex Modes

FDD & TDD

# of Relay Bands (MHz max.)

Relay Bandwidth (MHz max.)

20 + 20

Output Downlink Power (All Bands) (dBm max.)

20 (16 in U.K.)

Output Uplink Power (Bands 1/3/5/7/40) (dBm max.)

Output Uplink Power (Bands 8/20/28L/28U) (dBm max.

System Gain (dBm max.)

100

Enterprise-Grade Echo Cancellation (dB min.)

Return Loss (dB typ.)

-8

Impedance (Ω nom)

Resources

RWL GOG41_datasheet.pdf

RWL Nextivity CEL-FI_GOG41_brochure

GOG41_ Data Installation Guide
